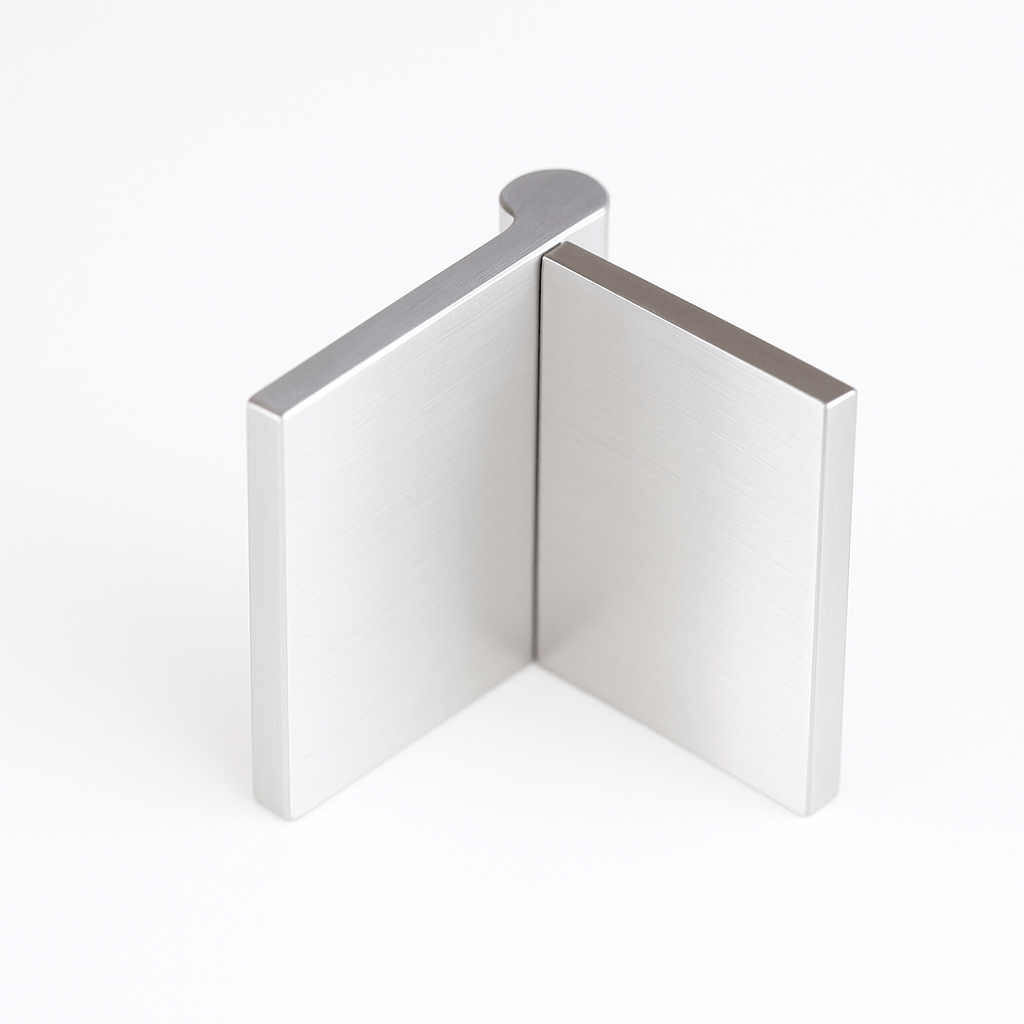

Surface Mount Hinge GG R

Glass Cabinet Surface-Mount Glass-to-Glass Hinge – Right

The Surface Hinge GG Right orientation is a slim, externally mounted glass-to-glass hinge, designed for UV adhesive bonding in applications where a flat, surface-mounted hinge solution is required. Manufactured from aluminium with a polished finish, this hinge provides a clean, minimal appearance while allowing full door movement without the need for drilling the glass.

With a low-profile depth of just 2.7 mm, the hinge sits flush against the glass surface, making it suitable for inset glass doors where discreet, surface-mounted hardware is preferred. The externally mounted design allows for straight forward installation and precise alignment, while maintaining uninterrupted glass edges.

Conventional hinges often rely on drilled fixings that weaken glass and increase breakage risk. The Surface Hinge GG is bonded directly to the glass using UV adhesive, eliminating drilling entirely and preserving the structural integrity of both glass and mirror doors. Primer preparation is required to ensure reliable adhesive performance.

This hinge is commonly used in glass display cabinets, mirrored doors, and light-duty glass enclosures where a flat, polished hinge design and wide opening angle are required

Performance and Practical Benefits

• Externally mounted, surface-mounted hinge design
• No drilling of glass required – preserves glass strength
• UV adhesive bonding with primer preparation
• Slim 2.7 mm profile for minimal projection
• 180° opening angle for full door access
• Suitable for glass and mirror doors
• Designed for inset door constructions
• Suitable for light to medium glass doors (< 10 kg per pair)

Handing (Important)

• Right-hand (RH) configuration as shown
• Handed orientation must be specified before bonding

Next Steps for Buyer

Detailed technical specifications, installation drawings, and load data are available in the Technical Information and Downloads sections. For complete frameless glass cabinet systems, this pivot hinge is commonly specified alongside compatible UV bonded surface mounted hinges for alternative door sizes or mounting requirements, as well as matching UV-bonded cabinet locks and magnetic door catches depending on door weight, configuration, and use case. For project pricing, technical support, or compatibility confirmation, buyers are encouraged to make direct contact before ordering.
